DISTRIBUTOR INIM FIRE ALARM IN MALAYSIA

#INIMFIREMALAYSIA

FIRE ALARM CONVENTIONAL
SYSTEM

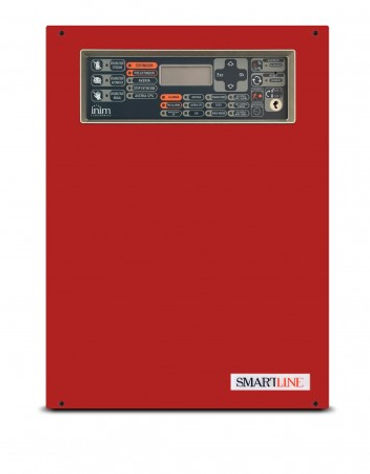

SMARTLINE CONVENTIONAL FIRE ALARM SYSTEM

MODEL NO .

1-SmartLine 020-Central to 4 conventional zones expandable to 20 by means of the card 8 zone SmartLine / 8Z (option). The control unit can manage the SmartLetLoose / ONE (option).

2-SmartLine 036-Central to 4 conventional zones expandable to 36 by means of the card 8 zone SmartLine / 8Z (option). The control unit can manage the SmartLetLoose / ONE (option).

practice_areas

ADDRESABLE FIRE ALARM SYSTEM

our_vision

Analogue Addressable Detection Previdia Max Control Panel c/w Internal Power Supply Unit.
• 7’’ touch screen, 65000 colours
• Emergency backup CPU
• 2 loops expandable to 16 (using IFM2L module)
• OpenLoop Technology can read others protocol devices (INIM& Apollo)
• LoopMap Technology Devices
• Versa++ Technology
• 2 or 4 wire loop connection
• Up to 240 devices per loop (depending on the selected protocol
• Self-enrolling (for loop devices)
• Self-addressing function for loop devices
• 2 or 4 wire loop connection

ENEA SERIES-FIELD DEVICES

All the field devices must have
• Certification: LPCB CPR EN54, BOMBA
• Serial self-addressing (each device is identified by a factory-assigned serial number)
• Built-in short-circuit isolator
• 240 addresses per loop
• 3 COLOR LED: green, yellow and red multicolor for device status signalling
• Alarm signals by colored LED and colored flag
• LoopMap Technology
• Friendly Software for programming Fire Alarm System

• 2 or 4 w• 3 COLOR LED: green, yellow and red multicolor for device status signalling ire loop connection

MULTI-PROTOCOL FIELD DEVICES

LED DETAIL ON INIM MODULE AND DEVICES

WhatsApp Image 2022-06-13 at 11.39.20 AM.jpeg

MAP TO DEVICE LOCATING OVER THE CABLE AND QUICK FAULT

simone-hutsch-_wpce-AsLxk-unsplashcrop.j

Inim Fire App

Inim Fire is the app that can be downloaded free of charge from the iOS and Android stores, aimed at both professionals (Installers / Maintenance technicians) and end users (Plant managers, safety managers, etc.), and allows you to manage all the PREVIDIA series control units connected to Inim Cloud Fire by Inim Electronics.

Hornet + networked control panels

To increase the extension of the system, it is possible to network several control units (max 48) in order to form a system of increased capacity (Hornet + network). In order to connect two or more control panels in the Hornet + network, the IFMNET module must be added to each control panel. This module provides two RS485 ports to make the ring connection.

Multiple control panels or Hornet + control panel networks can be linked together using a TCP-IP connection. Each node of a connection of this type is identified as a "Cluster"; each “Cluster” can consist of a single control panel, a Hornet + network of control panels or a Repeater (FPM-CPU unit configured as a remote keyboard).
